New small jade carving machine -FT-4040 with movable table servo motors

Place of Origin : Jinan

Brand Name : Flytech

Certification : CE

Model Number : FT-4040

Rated Power : 2200W

Engraving Speed : 8000MM/MIN

Main Axle Rotational Speed : 24000RPM

Feeding Height : 200MM

Milling Cutter Diameter : 3.175MM,4MM,6MM

Application : jade,metal,wood,stone

Dimensions : 600*8000*1400mm

Weight : 500kg

MOQ : 1set

Price : $3000-$5000

Packaging Details : free-fumigation wooden box

Delivery Time : 20 days

Payment Terms : T/T

Supply Ability : 20set/month

Contact Now

New Design Jade engraving machine FT-4040 cnc Router machine

Appications:

Jade, jadeite, jewel, mould processing. Finish sculpture, character, art/figure, crystal at one time.

Features:

1. Square linear guideway, well-steeled, gapless.

2. Imported high-accuracy ball screw, clear underface, non tool-mark.

3. Iron-sealed body, keep high-accuracy for long-time use.

4. Spindle adopts 2200W water cooled motor with less noise

5. Adopting imported circuit chip driving system to ensure high reliability.

6. Be available for advanced jewel design softwar, pretty essy to learn.

7.Servo motors with high precision low noisy

Parameter

Model	FT-4040 CNC Router
Working area	400*400mm
Guideway	Taiwan Hiwin Guideway
Transmission Mode	High precision ball screw for XYZ
Spindle Power	2.2KW water coolen spindle
light	Yes
Motors	Hybrid servo motors
Working speed	8000mm/min
Working voltage	220v/50hz or 110v 60hz
Resolution ratio	Less than 0.1mm
Control system	Ncstudio
Working table	movable
Working command	G-code/HPGL,PLT,MMG
Net weight	400KG
Gross weight	500KG

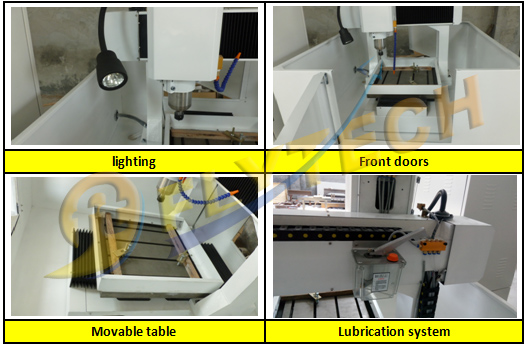

Machine Detail

Samples
